7 Seg decryptor by U42

U42
U42
11 / 0
16th December
10:18:30

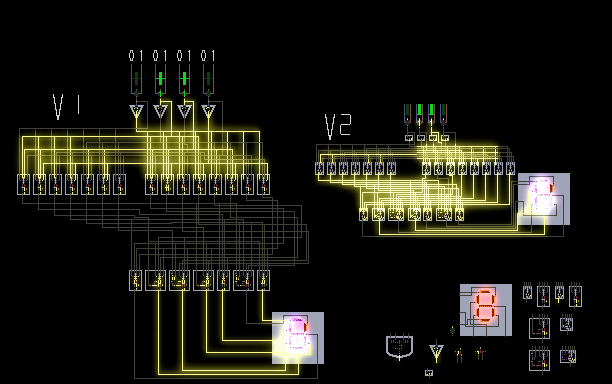

Decodes binary signal for a seven segment display to visualize it. FLASHING LIGHTS!!!!!! EVIL
electronics sprk logics binary decoder

Comments

  • U42
    U42     10:19:26
    Fixed the problem was with upper right NOT AND gate three terminal 4 being connected to 3 instead of 4 invert
  • U42
    U42     10:15:23
    Working on that.
  • ArolaunTech
    ArolaunTech     4:08:20
    very cool but 0101 displays an 8 on version 2 (0, 1, 2, 3, 4, 6, 7 all work on version 2 and idk if 8 or 9 work on v2) +1
  • U42
    U42     18th December
    issue eliminated
  • U42
    U42     18th December
    an issue is found wiht 4
  • U42
    U42     18th December
    AND gate 3 on bottom had issue with second terminal not affecting the behaviour of first terminal due to NTCT always conducting to the pscn regardless of temperature
  • U42
    U42     18th December
    @mellowmonster12 V2 logic gate issue was fixed now it displays correctly with AND gate behaviour
  • mellowmonster12
    mellowmonster12     18th December
    v2 decodes 0111 incorrectly
  • U42
    U42     17th December
    SCHIZO DEVICE V2 FINISHED
  • U42
    U42     17th December
    developing smaller version of the device using new components
